1	WordNet C Database & Relationship Browser Keith Alcock TCS DevSIG 1 June 2004
2	Overview Standard WordNet Description Application Challenges Optimized WordNet Improvements Parts WordNet Builder WordNet C Database WordNet Relationship Browser Demo Developer topics Code generation Unit testing Trees Jagged arrays Design patterns Iterator Singleton Composite MVC Observer Template method Command Memory management Smalltalk/C Interop
3	Standard WordNet-Description http://www.cogsci.princeton.edu/~wn/ “WordNet® is an online lexical reference system whose design is inspired by current psycholinguistic theories of human lexical memory. English nouns, verbs, adjectives and adverbs are organized into synonym sets, each representing one underlying lexical concept. Different relations link the synonym sets.” Fong A synonym set (synset) network connected by semantic relations.

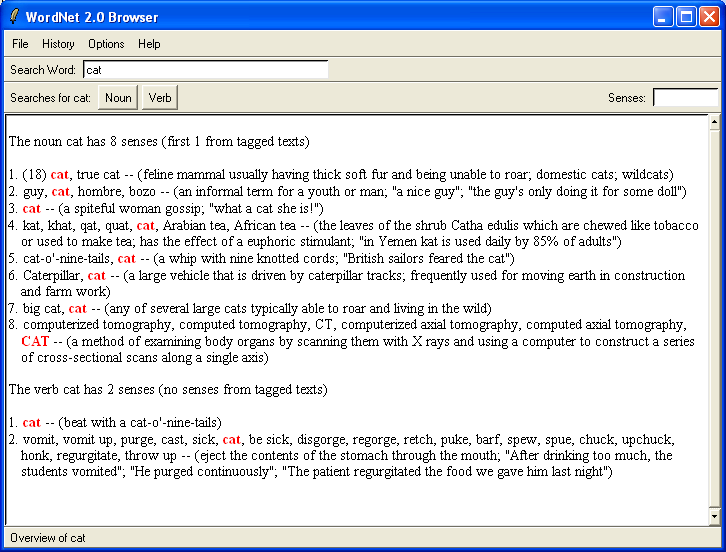

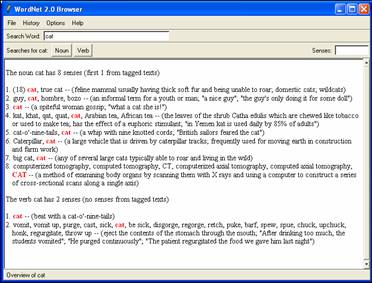

4	Standard WordNet-Description Synset example cat (lemma or lexeme) computerized tomography, computed tomography, CT, computerized axial tomography, computed axial tomography, CAT (n) cat, true cat (n) big cat, cat (n) Caterpillar, cat (n) cat-o’nine-tails, cat (n) kat, khat, qat, quat, cat, Arabian tea, African tea (n) cat (n) guy, cat, hombre, bozo (n) vomit, vomit up, purge, cast, sick, cat, be sick, disgorge, regorge, retch, puke, barf, spew, spue, chuck, upchuck, honk, regurgitate, throw up (v) cat (v)
5	Standard WordNet-Description Relationships Antonym, opposite Hypernym, ISA base class Hyponym, ISA derived class Holonym, HASA whole Meronym, HASA part Entailment, e.g., snoring entails sleeping 25 in all including attribute, cause, derivation, participle, pertainym, etc.
6	Standard WordNet-Description
7	Standard WordNet-Application
8	Standard WordNet-Application
9	Standard WordNet-Application WordNet bin dict doc html pdf ps include lib tcl8.3 tk8.3 wnres man src lib wnres wn wnb dict lexnames cntlist.rev cntlist sentidx.vrb sents.vrb frames.vrb adj.exc adv.exc noun.exc verb.exc noun.dat verb.dat adj.dat adv.dat sense.idx adj.idx adv.idx noun.idx verb.idx
10	Standard WordNet-Application idx files code n 3 4 @ ~ + ; 3 2 06256978 05959940 05961454 dat files 05961454 10 n 02 code 2 computer_code 0 013 @ 05959763 n 0000 ;c 05762229 n 0000 + 00961643 v 0102 ~ 05961859 n 0000 ~ 05962069 n 0000 ~ 05962617 n 0000 ~ 05962737 n 0000 ~ 05963127 n 0000 ~ 05963298 n 0000 ~ 05963472 n 0000 ~ 05963624 n 0000 ~ 06162514 n 0000 ~ 06178338 n 0000 \| (computer science) the symbolic arrangement of data or instructions in a computer program or the set of such instructions
11	Standard WordNet-Application Word sense disambiguation Discourse structure Text summarization and annotation Information extraction and retrieval Automatic indexing Automatic correction of word errors in text Semantic bleaching Determination of opposition
12	Standard WordNet-Application Semantic distance Hirst-St. Onge Leacock-Chodorow
13	Standard WordNet-Application
14	Standard WordNet-Application
15	Standard WordNet-Challenges Advantages is relatively platform neutral and therefore portable can be searched with relatively simple tools like grep or from within various text editors or word processors does not require that the entire database resides in memory is at least minimally human readable
16	Standard WordNet-Challenges Disadvantages is only impractically editable because of the offset fields allows programmers to bypass the logical structure requires substantial and slow disk I/O to access data scatters information across multiple files involves substantial indexing at runtime calls memory management functions
17	Optimized WordNet-Improvements
18	Optimized WordNet-Improvements Updating pointers and indexes is easier to do programmatically than by hand. Bypassing the API and accessing data directly is more difficult with this arrangement. No data resides in files other than the executable (exe or dll), which itself loads almost instantly. Both data and functions are contained in a single file and cannot be separated. Indexing is performed during conversion to C code, not at database startup time. The database requires no dynamically allocated memory for itself. All data is available all the time.
19	Optimized WordNet-Parts
20	Optimized WordNet-Parts WordNet Builder Combines all files Adds lemmas, words, and glosses to trie Converts to indexed jagged arrays Alphabetizes lemmas and marks part of speech Calculates longest word, longest gloss, fanout
21	Optimized WordNet-Parts WnCDb Provides API access to data Summary data Lemmas Synset words Synset children Calculates distances Searches for paths

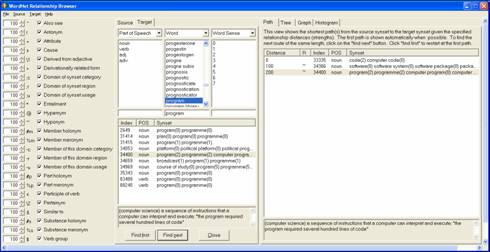

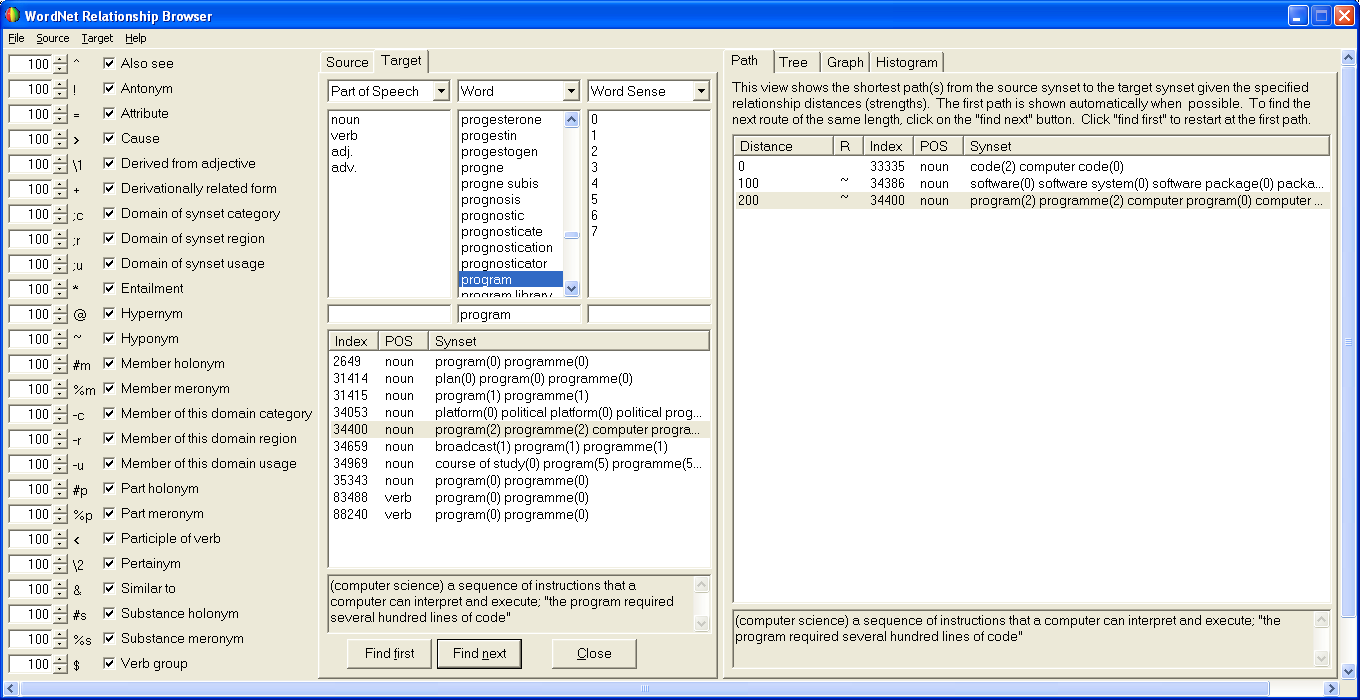

22	Optimized WordNet-Parts WordNet Relationship Browser Allows adjustment and disabling of relationships Shows parts of speech, lemmas, and synset index Filters based on any of these in any order Displays synset index, part of speech, words, and gloss Allows selection of source and target synsets Shows path, tree, graph, and histogram Provides navigation support for these
23	Optimized WordNet-Demo
24	Developer Topics-Code generation WordNet Builder is a code munger Input is not exactly code but rather data Purpose is different than most generators Optimizes speed Optimizes storage Enforces API Somewhat related to generation of data tier Give and go process Smalltalk drives down court and hands data to C compiler C compiler gives back optimized access through DLL Smalltalk makes the basket
25	Developer Topics-Unit testing Automated SUnit CUnit Manual Run Smalltalk debugger inside C debugger
26	Developer Topics-Trees Smalltalk Index, child count C
27	Developer Topics-Trees
28	Developer Topics-Jagged arrays
29	Developer Topics-Design patterns Iterator Shortest path is array of synset index, relationship number so can continue from where left off Singleton WordNetLibrary instance is WordNetLibrary default Composite WordNetOutputFile WordNetMultipleOutputFile WordNetSingleOutputFile WordNetFilter WordNetMultipleFilter WordNetSingleFilter Model View Controller (MVC) Dolphin actually uses Model View Presenter (MVP) Observer Presenter subscribes to events of model and view Template Method E.g., WordNetBase>>new, WordNetInputFile>>read Command E.g., Presenter>>queryCommand
30	Developer Topics-Memory management Precalculate maximum size and allocate space statically char gloss[MAX_GLOSS_LENGTH+1]; char *getWnCDbSynsetGloss(int synsetIndex); Provide access to precalculated value and have caller allocate space int getWnCDbSynsetCount(); Callback multiple times int enumWnCDbSynsetWords( SYNSET_WORD_COLLECTOR wordCollector, int synsetIndex);
31	Developer Topics-Smalltalk/C interop WordNetLibrary>>enumSynsetWords: aBlock atSynsetIndex: anInteger \| callback returnValue \| callback := ExternalCallback block: aBlock descriptor: (ExternalDescriptor fromString: 'cdecl: sdword sdword lpstr sdword'). returnValue := self basicEnumSynsetWords: callback asParameter atSynsetIndex: anInteger. callback notNil ifTrue: [ callback free ]. ^returnValue. WordNetLibrary>>basicEnumSynsetWords: aCallback atSynsetIndex: anInteger <cdecl: sdword enumWnCDbSynsetWords lpvoid sdword> ^self invalidCall. WordNetSynsetData>>read \| stream \| stream := WriteStream on: String new. WordNetLibrary default enumSynsetWords: [ :tmpPos :tmpWord :tmpLexId \| pos := tmpPos. stream… ] atSynsetIndex: index. words := stream contents.
32	Concluding Remarks Non-numeric computing can involve lots of numbers One solution does not fit all The compiler is your friend Code generation is powerful and fun Design patterns are everywhere Applications don’t need to be monolithic Language tech & linguistics are fun
